Asynchronous Tool Calls

Generated from documentation/async-tool-calls.md, the repository is the canonical source and may be ahead of this page.

Asynchronous Tool Calls

By default an agent runs every tool call of a turn one after another and only answers the LLM once all of them are done. In asynchronous mode, calls run concurrently in the background, the LLM can be handed a partial answer while they run, and it can ask about, wait for, or cancel them.

This is useful when a turn issues several slow calls (builds, test runs, HTTP requests), and when you want the model (or the user) to keep working while a long call finishes.

For deferred calls completed by an external worker (rather than in this process), see durable-workflows-howto.md.

Enabling it

Async execution is configured per agent in the agent JSON:

{
  "slug": "my-agent",
  "executionMode": "asynchronous",
  "asyncYieldStrategy": "yieldOnAnyProgress",
  "maxConcurrency": 4,
  "asyncCallTimeoutSeconds": 900,
  "toolCallPolicyConfig": {
    "default": {"tag": "runSync"},
    "rules": [
      {"tool": "build_project", "disposition": {"tag": "runAsync"}},
      {"tool": "run_tests", "disposition": {"tag": "runAsync"}}
    ]
  }
}

Yield strategies:

Both executionMode and toolCallPolicyConfig are needed: the mode enables the machinery, the policy decides which calls actually go to the background.

The settings apply everywhere an agent runs: run (one-shot), the TUI, the session commands, and agents called as tools by other agents.

Wrappers

rules pick how a call runs. wrappers add decorators around it: a timeout, retries, a cap on the result, a hook that may deny or defer the call. Every wrapper whose match holds applies, in file order, the first one outermost.

"toolCallPolicyConfig": {
  "default": {"tag": "runSync"},
  "rules": [],
  "wrappers": [
    {"match": {"tool": "http_*"},
     "decorators": [{"tag": "retries", "count": 2}, {"tag": "timeout", "seconds": 30}]},
    {"match": {"tool": "bash_*", "args": {"path": "command", "glob": "rm *"}},
     "decorators": [{"tag": "before", "hook": {"command": "hooks/approve"}}]},
    {"match": {"args": {"all": [{"path": "env", "equals": "production"},
                                {"not": {"path": "dry_run", "equals": true}}]}},
     "decorators": [{"tag": "before", "hook": {"command": "hooks/approve"}}]}
  ]
}

match has two optional parts, and both must hold:

• tool: a glob (* only) on the name of the tool as the model calls it.
• args: a predicate on the arguments of the call.

A path is a dot-separated list of object keys and array indices (options.targets.0); the empty path is the whole arguments object.

Three things to know when a wrapper guards a tool:

• A missing value fails equals and glob. Write “unless dry_run is true” with not, as above: it then also covers calls that leave dry_run out.
• The predicate sees the arguments as the model sent them. A value added by a binding is not seen, the same rule as for hooks. Arguments that are not valid JSON are null to the predicate.
• A predicate that cannot be read (a misspelt operator, two operators in one object) is a loading error for the agent, not a rule that never matches.

What the LLM sees

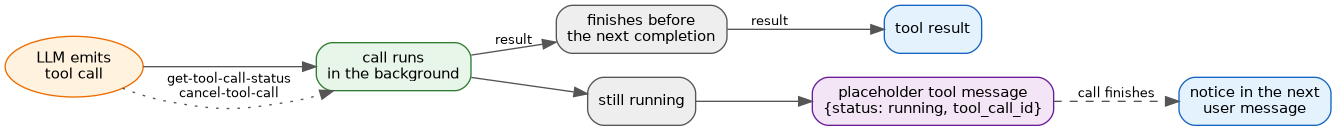

A call that has not finished when the LLM is asked for its next completion gets a placeholder tool message instead of a result:

{"status": "running",
 "message": "This tool call has not finished yet. Its result will be delivered in a later message. Use get-tool-call-status with this tool_call_id to inspect it, or cancel-tool-call to stop it.",
 "tool_call_id": "call_abc"}

Every tool call always gets exactly one tool message, as OpenAI-compatible APIs require.

When the call finishes, its result is delivered in the next user message, once, as a notice:

Background tool calls finished since their placeholder responses:

tool_call_id call_abc (run_tests) completed:
42 tests passed

If the model already read the result with get-tool-call-status, the notice does not repeat it:

tool_call_id call_abc (run_tests) completed: result already read with get-tool-call-status

A session with a mailbox (the TUI, one-shot runs, the server) also gets a ToolCallFinished mail for each finished call, which is what wakes a waiting session. That mail is not shown to the model: the result reaches it once, as the call’s tool message or in the notice above. The one exception is mail about a call the current process does not know (a durable mailbox read after a restart), which is shown like any other mail, since the call itself is then reported as orphaned.

If the LLM ends its turn while calls are still running, the session does not stop: it waits for the results and sends them.

Tool-call capabilities

Enable these in the System Toolbox so the model can manage its own background calls:

{"builtinToolboxes": [
  {"tag": "SystemToolbox",
   "contents": {
     "Name": "system",
     "Description": "System context and background tool calls",
     "Capabilities": ["get-tool-call-status", "list-running-tool-calls", "cancel-tool-call", "send-to-tool-call"]
   }}
]}

Calls are addressed by the tool_call_id the model itself used (e.g. call_abc); the internal UUID also works.

send-to-tool-call takes tool_call_id, text, and optionally expects_reply and interrupt. It is send-message to the session of the helper, found from the call instead of from a session id, with the same mail scopes. The helper reads the message before its next completion, so a message that arrives while the helper writes its final answer is not read. The call must still be running and must be a sub-agent call: there is nothing to write to in a bash or MCP call. It works under the runner (the TUI and agents-server, where the helper is a session of its own) and in run.

get-tool-call-status reports orphaned for a call that was running when its process went away (e.g. the session was saved and reloaded elsewhere). Such a call can never finish, so the stepper resolves it as failed rather than waiting for it.

Across a restart

A background call lives in the process that started it. When that process goes away while the call runs, the call is lost, and what happens next depends on the tool.

By default the call is reported as orphaned, as described above: the model is told the result is lost and decides what to do. Nothing is run twice.

A tool that is safe to run twice can be marked so, with the rerunOnRestart decorator in a wrappers rule:

{"toolCallPolicyConfig": {
   "default": {"tag": "runSync"},
   "rules": [{"tool": "bash_run_tests", "disposition": {"tag": "runAsync"}}],
   "wrappers": [
     {"match": {"tool": "bash_run_tests"},
      "decorators": [{"tag": "rerunOnRestart", "times": 1}]}
   ]}}

A call of such a tool that was running when its process went away is started again by the next process, from the beginning, with the same arguments and under the same tool_call_id. Its result is delivered like any late result, with a note that the call ran again:

tool_call_id call_abc (bash_run_tests) completed (run again from the start after a restart):
42 tests passed

What this does and does not give:

• It is a re-run, not a resume. Nothing of the first run is kept (output, progress, a half-written file), and the tool is executed at least twice in total. Only mark tools for which that is harmless: reads, builds, test runs, idempotent requests.
• times (default 1) is how many times one call may be started again. Once it is used up, a further restart reports the call as orphaned. This bounds a tool that takes its process down with it.
• The session is the record: a call is known to be in flight because the stored session says running for it. No other storage is involved, so it works with every session store, in the TUI and on the server alike.
• The call is started again when the session next runs. The server and the TUI do that by themselves at startup for the sessions a previous process left running (recoverOnStartup); elsewhere (agents-exe session resume), it happens when you resume.
• A call that ended just before the restart, and whose result is in the session’s mailbox, is not run again.
• A call that was cancelled (cancel-tool-call, cancelling the run) is not started again.
• Not covered: the calls of a step that was interrupted before it was stored. The session then still ends with the LLM’s request for them, and the next run executes that whole step again, whatever the tools are marked with. This is how every interrupted step has always been handled.

Progress

Tools that run in the background can report progress, which the model reads through get-tool-call-status and the TUI shows next to the running call.

• Bash tools report their latest output line, at most twice a second: {"stream": "stdout", "line": "compiling module 12/40", "lines": 12, "bytes": 480}.
• Agents called as tools report each step of the sub-agent: {"message": "sub-agent calling read_file", "turns": 7}. This applies to a prompt_agent_<slug> call that still runs in-tool (narrowed with bindings/with/as, or outside the runner). Under the runner, a sub-agent call with no narrowing runs as its own session instead (todos/os-as-standalone-server.md, Phase 5): its progress is that session’s own session.updated/text.delta/tool.* events, not this per-step callback.
• Your own tools can report anything JSON through ctxProgressCallback in the ToolExecutionContext.

Asking for the model’s attention

Progress is read by the model when it asks. A tool that should not wait for that reports a payload at the notify level: any JSON object whose level is "notify", with the text in message.

• Bash tools write a line starting with ::notify:: on standard error: echo "::notify:: 3 tests are red, still running" >&2.
• Your own tools call ctxProgressCallback with notifyProgress "…".

Such a payload is kept as progress like any other, and is also sent to the session as mail:

[mail 6f1c… from tool call 0d5e…]
tool call call_abc (run_tests) notifies:
3 tests are red, still running

The model gets it with its next completion. If the session was idle, waiting for its background calls, or in wait, the mail wakes it, and the call goes on running. A call the step is still attached to is not interrupted: the mail is delivered when the step hands control back. A call sends at most 16 such mails, and they count against the mailbox bound; what is over is progress only.

This needs executionMode: asynchronous (always on under the runner: the TUI and agents-server), because only a call run by the async engine has somewhere to report to.

MCP and OpenAPI tools do not report progress yet. An OpenAPI call waits for one complete HTTP response, so there is nothing to stream. MCP does define progress notifications (ProgressNotification in System.Agents.MCP.Base), but the client currently ignores them; forwarding them to ctxProgressCallback would make MCP tools report progress like bash tools.

The 50 most recent progress entries per call are kept.

Cancelling

cancel-tool-call interrupts the call’s thread. A bash tool runs its script in its own process group, so cancelling kills the script and whatever it started. The same happens when a call exceeds asyncCallTimeoutSeconds.

A call is cancelled through the engine that started it, wherever that engine is in the process: cancelling works the same after the session was paused and resumed with a newly built agent. Only a call whose process is gone cannot be interrupted; it is reported as orphaned.

Background calls are cancelled when the agent that owns them finishes or fails, so nothing keeps running (or keeps a subprocess alive) after a run.

In the TUI

Running calls appear under the turn that issued them, with their latest progress:

[Partial] > run the tests and the linter
  ✓ lint (call_1): completed
  ⏳ run_tests (call_2): running: 128 tests passed

A line above the conversation lists what is still running. While background calls run and the LLM has nothing to do, the TUI accepts input, so you can keep talking; whichever comes first — your message or the results — is sent to the model.

In one-shot runs

agents-exe run waits for background calls: they cannot outlive the process.

It stops early only when a turn waits on deferred calls, which an external worker has to complete. It then prints a JSON report and stores the session so it can be continued:

{"status": "paused",
 "reason": "waiting for deferred tool calls",
 "session_id": "…",
 "deferred_calls": [{"tool": "approve_deploy", "tool_call_id": "call_9", "continuation_token": "…"}]}

Continue it with agents-exe session complete and agents-exe session resume (see durable-workflows-howto.md).

Logs

Each step of a background call is traced, with the ids needed to follow one call through a log:

Every line has session_id, conversation_id, tool_call_id, tool, and provider_call_id when the provider gave one; a call made by a sub-agent also has sub_agent: true. A call ends with exactly one of the last four.

{"ts":"…","kind":"tool_call.started","session_id":"…","conversation_id":"…","tool_call_id":"…","tool":"bash_run_tests","provider_call_id":"call_abc","queued_ms":0}
{"ts":"…","kind":"tool_call.completed","session_id":"…","conversation_id":"…","tool_call_id":"…","tool":"bash_run_tests","provider_call_id":"call_abc","elapsed_ms":8412}

Where they go:

• agents-server (and agents-exe serve): its JSON log on stderr.
• agents-exe tui, run and mcp-server: the file given with --log-json-file (same fields, no ts), and, in Haskell show form, the --log-file.

In Haskell, these are AsyncTrace values (System.Agents.Session.Async.Engine). An agent hands its ctxAsyncTracer to the engine it creates; AgentFactory.buildAgent sets it from its own tracer, as AsyncToolCallTrace.

Session files

Partial turns are stored in the session, with each call’s state. session-print shows them:

## ⏸️ Step 4: Partial Turn (in progress)
_(Some tool calls had not finished when this turn was sent)_

### ⏳ Tool Call Status

- `lint` (`call_1`): completed
- `run_tests` (`call_2`): running (placeholder sent)

Limits

• Background calls live in the process that started them. A session reloaded elsewhere reports them as orphaned, or runs them again when their tool is marked rerunOnRestart (see “Across a restart”). A call is never resumed from where it stopped.
• runAsync returns only the session. To pause and resume in the same process, use runAsyncKeepingAgent and resume with the agent it returns: that agent holds the engine that owns the running calls. A session resumed with a freshly built agent still gets their results and can still cancel them, but the new engine’s maxConcurrency does not count them and they are not cancelled when the resumed run ends.
• run and runWithProgress return only a final result, so they cannot hand back a session that waits on deferred calls: they throw BlockedOnDeferredCalls, which carries that session. Use runUntilBlocked or runAsync where deferred calls are expected.
• maxConcurrency is per agent. To cap several agents together, share one limit built with newAsyncConcurrencyLimit between their engines.
• The only limit on background calls is that number of calls running at once. There is no rate limit (calls started per second or minute).
